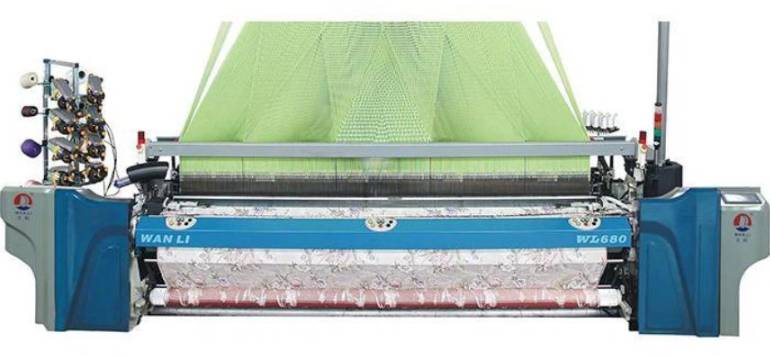

● Ultrafast start rapier loom

● Jacquard hooks: 2688/5120/5376 hooks

● Jacquard hooks circulation: 100000 picks

● Application: suitable for cotton, flacen, silk, polyster and etc.

● Width (cm): 150,190,210,230,250,280,300,340,380

● Maximum speed: 420-720 rpm

● Weft insertion: four spacial commecting rod drive, no guiding hook gripper & gripper tape, suspending single hook, or suspending double hook weft feeding

● Weft battening: matched cam which in tank wall

● Color selecting: 8 electronic color selecting

● Shedding device: electronic dobby, or electronic jacquard with maximum 10000 needles

● Let off: electronic let off, warp beam 800mm or 1000mm

● Take up: electronic take up, weft density range in 1-120 picks/cm
